Blue Sea 8411 AC 8 Position [8411]

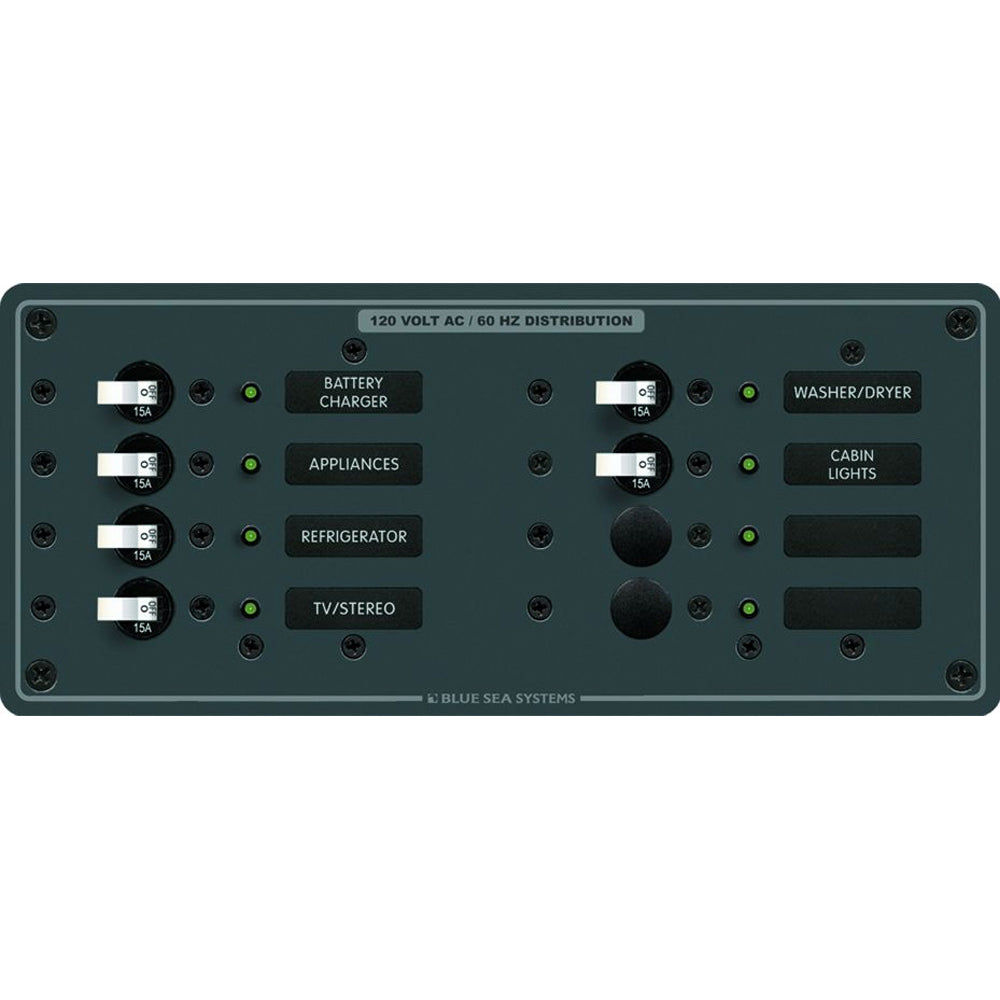

The Blue Sea 8411 AC 8-Position panel is a top - notch electrical solution. It comes with 6 single - pole 15A circuit breakers. All hot, neutral, and safety ground buses are pre - wired. The circuit label positions on standard panels are backlit, no additional kit needed. 'ON' indicating LEDs are installed in every circuit position. With a maximum panel amperage of 100 Amperes, it's powerful. It has a MIL - C5541C or equivalent immersion undercoating for long - lasting corrosion resistance and a two - part polyurethane slate gray finish. Made of heavy 1/8' aluminum 5052 alloy, it follows industry standard height and width. Countersunk mounting holes are throughout. It includes detailed installation instructions, a cutout template, a set of 30 common Large Format Labels, and there are over 500 individual labels available. Voltage is 120v, it's an AC panel, max breaker quantity is 8, box dimensions are 4'H x 9'W x 12'L and it weighs 2.85 lbs. UPC is 632085084110. WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf) and Owner's Manual (pdf) are available.

Using this Blue Sea 8411 AC 8 - Position panel is easy. First, refer to the detailed installation instructions and cutout template included. Mount it using the countersunk mounting holes. Make sure to connect the pre - wired hot, neutral, and safety ground buses correctly. When using, you can easily see the 'ON' status of each circuit through the LEDs. The backlit circuit label positions help you identify circuits clearly. As for maintenance, since it has an immersion undercoating for corrosion resistance, it should last a long time. But keep it away from extreme conditions. Also, be aware of the warning about exposure to harmful chemicals. If you need to label circuits, use the provided set of 30 common Large Format Labels or choose from over 500 individual labels available.
