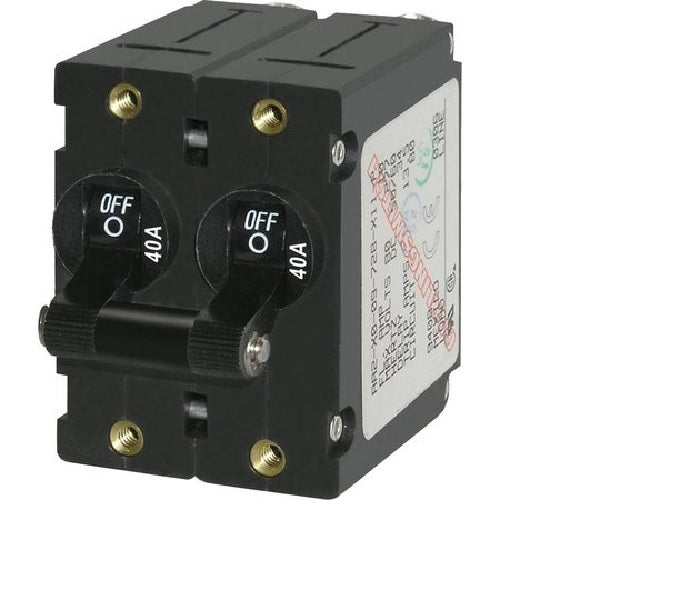

Blue Sea A-Series 40A Double Pole Black Toggle Circuit Breaker
Model: 7239-BSS
- An industry - standard circuit breaker for Blue Sea Systems' electrical panels
- Combines switching and circuit protection in one device
- With a 'Trip Free' design, it won't stay 'ON' during fault current
Specifications| Amperage | 40A AC
40A DC |
| Color | Black |
| Poles | 2 |
| Maximum Voltage | 120V AC
240V AC
65V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Switching Cycles | 10000 |
Using this Blue Sea A - Series circuit breaker is easy. First, make sure the power is off before installation. Connect it according to the electrical panel's wiring diagram. When you need to turn on the circuit, simply toggle the switch to the 'ON' position. During normal use, it will protect your circuit and automatically cut off the power when there's a fault. Keep in mind that the breaker should operate within the temperature range of -40°C to 85°C. Avoid overloading the circuit beyond the 40A limit for both AC and DC. For maintenance, check the breaker periodically for any signs of damage or wear. If it trips frequently, there might be an issue with the connected devices or the circuit itself. You can reset the breaker by toggling it to the 'OFF' position and then back to 'ON'.
