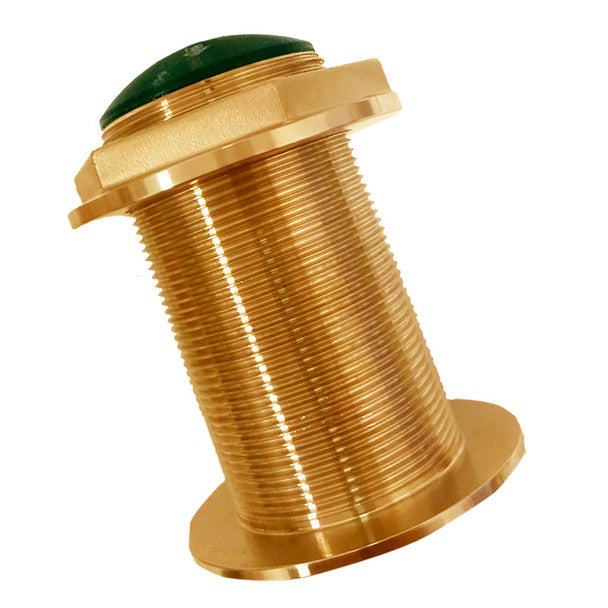

Echonautics BT70L300-00 CHIRP Transducer
Model: BT70L300-00
This low - profile thru - hull CHIRP transducer is a great choice for your vessel. It can match the vessel's deadrise to a specific angle, minimize drag, and perform well at high speeds.
Specifications| Function | Depth and Temperature |
| Frequency | CHIRP 40/75kHz |
| Mount style | Thru Hull |
| Tilt/deadrise | 0° tilted element ; suitable for 0° to 7° hull deadrise |
| Material | Bronze |
| RMS Power | 300 watts |
| Hole diameter | 2.38 in |
| Cable length | 27 ft |
| Temperature sensor | NTC |
| Accoustic window | Urethane |
Using this Echonautics transducer is easy. First, make sure your vessel's hull deadrise is between 0° and 7°. Then, mount the transducer using the thru - hull style through a 2.38 - inch hole. Connect the 27 - foot cable properly. When in use, it will give you accurate depth and temperature readings. As for maintenance, keep the bronze body clean. Avoid hitting it against hard objects. If the urethane acoustic window gets dirty, clean it gently with a soft cloth. Also, check the NTC temperature sensor regularly to ensure it's working well. That's all you need to do to keep this great transducer in top shape!
